useElementPageContext Organization

The useElementPageContext hook provides a function to add custom elements to a PDF page.

It enables you to create custom elements such as a bounding box, a shape or an image for a specified page.

This is useful for labelling certain parts of a PDF page or displaying certain content dynamically.

Return Type

Section titled “Return Type”
NameTypeDescription
clearElements(pageNumber: number) => voidRemove all custom elements from the specific page
elementListRecord<number, Array<HTMLElement | JSX.Element>>Access the current scale level of the current PDF page
removeElement(pageNumber: number, index: number) => voidRemove a custom element from the specific page
scrollToElement(page: number, index: number, config?: { behavior: ‘smooth’ | ‘auto’ | ‘instant’ }) => voidScroll to a specific element on the given page, centering it in the viewer. The default scroll behavior is ‘smooth’
updateElement(pageNumber: number, element: (dimension: {width: number, height: number}, rotate: number, zoom: number) => HTMLElement | JSX.Element) => voidAdd a custom element to the specific page

Usage

Section titled “Usage”

To ensure the element page context can be accessed, you will need to use useElementPageContext inside a component which is a child of RPProvider.

This example shows how to create a CustomElementPage component which uses useElementPageContext to handle the element page functionality.

    import { useCallback, useState, useEffect } from 'react'
    import {
      RPConfig,
      RPProvider,
      RPDefaultLayout,
      RPPages,
      useElementPageContext
    } from '@pdf-viewer/react'


    const createHTMLElement = (
      id,
      pageDimension,
      position = { x: 0, y: 0 }
    ) => {
      const div = document.createElement('div')
      // set id to element
      div.id = id
      // setting style
      div.style.backgroundColor = 'green'
      // set dimension as percentage of page dimension
      div.style.width = `${(100 / pageDimension.width) * 100}%`
      div.style.height = `${(100 / pageDimension.height) * 100}%`
      div.style.color = 'white'
      div.style.padding = '2px 4px'
      div.style.borderRadius = '4px'
      div.style.position = 'absolute'
      // set position as percentage of page dimension
      div.style.top = `${(position.y / pageDimension.height) * 100}%`
      div.style.left = `${(position.x / pageDimension.width) * 100}%`
      return div
    }


    // function to create react jsx element
    const createJSXElement = (
      id,
      pageDimension,
      position = { x: 0, y: 0 },
      removeElement
    ) => {
      return (
        <div
          id={id}
          style={{
            backgroundColor: 'red',
            // set dimension as percentage of page dimension
            width: `${(100 / pageDimension.width) * 100}%`,
            height: `${(100 / pageDimension.height) * 100}%`,
            color: 'white',
            padding: '2px 4px',
            borderRadius: '4px',
            position: 'absolute',
            // set position as percentage of page dimension
            top: `${(position.y / pageDimension.height) * 100}%`,
            left: `${(position.x / pageDimension.width) * 100}%`,
            zIndex: 10
          }}
        >
          <button onClick={removeElement}>remove</button>
        </div>
      )
    }


    const CustomElement = () => {
      const { updateElement, clearElements, scrollToElement } = useElementPageContext()
      const [page, setPage] = useState(1)
      const [x, setX] = useState(0)
      const [y, setY] = useState(0)
      const [list, setList] = useState({
        [1]: [
          { x: 0, y: 0 },
          {
            x: 50,
            y: 50,
            removable: true
          }
        ]
      })


      useEffect(() => {
        // assume page dimension at scale 100% is 612 x 792
        const pageDimension = { width: 612, height: 792 }


        const pages = Object.keys(list)
        // list element
        Object.entries(list).forEach(([page, items]) => {
          items.forEach((item, idx) => {
            updateElement(Number(page), (_prev = [], _dimension, _rotate, _scale) => {
              const id = `${page}-${idx}`
              const newElement = item.removable
                ? createJSXElement(
                    id,
                    pageDimension,
                    {
                      x: item.x,
                      y: item.y
                    },
                    item.removable ? () => removeItem(Number(page), idx) : undefined
                  )
                : createHTMLElement(id, pageDimension, {
                    x: item.x,
                    y: item.y
                  })
              return [..._prev, newElement]
            })
          })
        })


        return () => {
          pages.forEach((page) => {
            clearElements(Number(page))
          })
          clearElements(1)
        }
      }, [updateElement, list, clearElements])


      // remove item from list
      const removeItem = useCallback((page, index) => {
        setList((prev) => {
          const newList = { ...prev }
          newList[page] = newList[page].filter((_, i) => i !== index)
          return newList
        })
      }, [])


      const handleClear = useCallback(() => {
        setList((prev) => {
          const newList = { ...prev }
          delete newList[page]
          return newList
        })
      }, [page])


      const handleAdd = useCallback(() => {
        setList((prev) => ({
          ...prev,
          [page]: [
            ...(prev[page] || []),
            {
              x,
              y
            }
          ]
        }))
      }, [page, x, y])


      const handleGoToElement = useCallback(() => {
        scrollToElement(1, 0)
      }, [scrollToElement])


      return (
        <>
          <div>
            page: <input type="number" value={page} onChange={(e) => setPage(Number(e.target.value))} />
          </div>
          <div>
            x: <input type="number" value={x} onChange={(e) => setX(Number(e.target.value))} />
          </div>
          <div>
            y: <input type="number" value={y} onChange={(e) => setY(Number(e.target.value))} />
          </div>
          <button onClick={handleClear}>clear</button>
          <button onClick={handleAdd}>add</button>
          <button onClick={handleGoToElement}>go to first element on page 1</button>
        </>
      )
    }


    export const AppPdfViewer = () => {
      return (
        <RPConfig licenseKey="YOUR_LICENSE_KEY">
          <RPProvider src="https://cdn.codewithmosh.com/image/upload/v1721763853/guides/web-roadmap.pdf">
            <CustomElement />
            <RPDefaultLayout>
              <RPPages />
            </RPDefaultLayout>
          </RPProvider>
        </RPConfig>
      )
    }

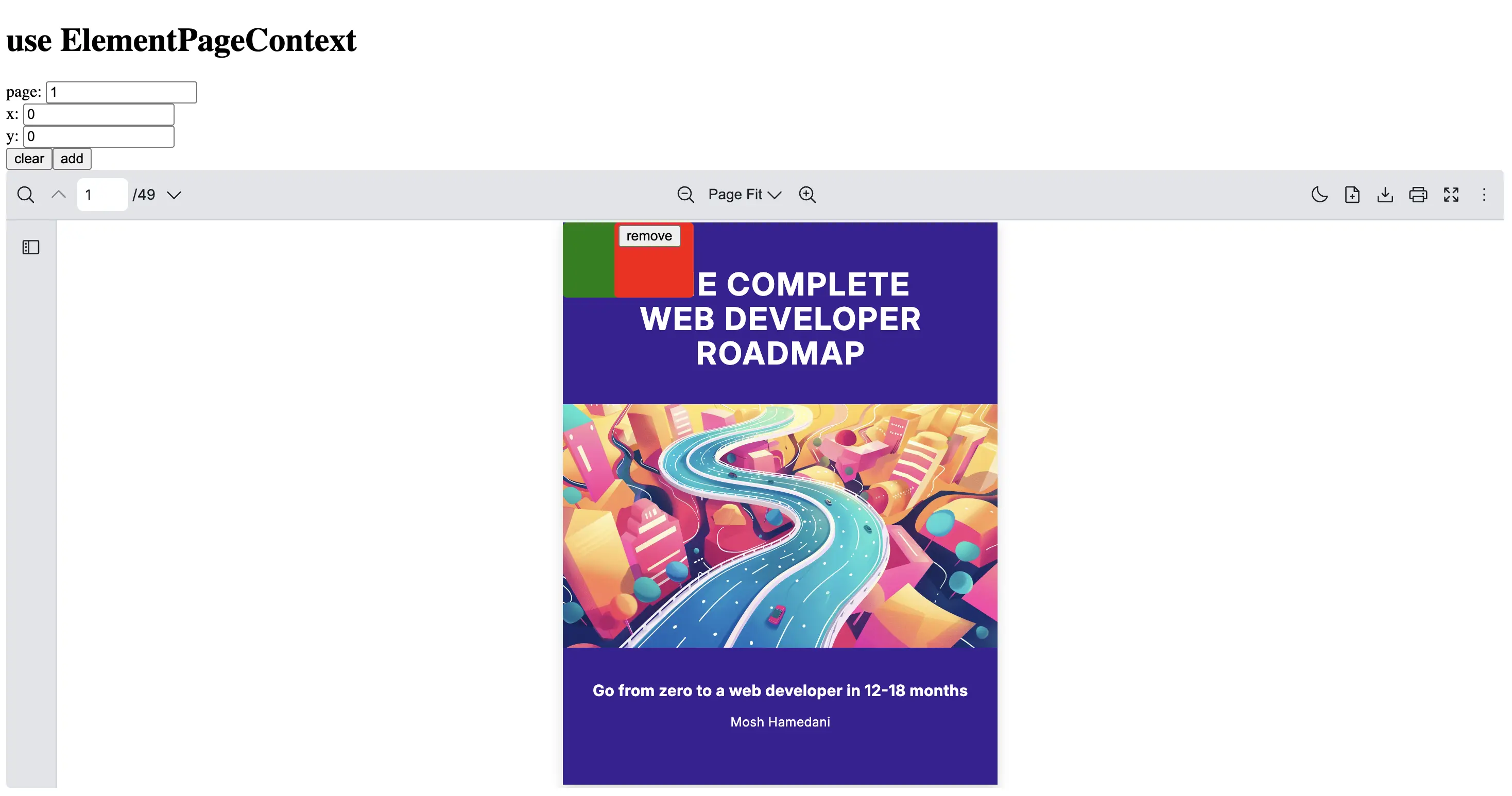

An example of how to use useElementPageContext hook
